OpenAPI Specification

Complete Code
The end result of the code developed in this document can be found in the GitHub monorepo springboot-demo-projects, commit(s) OpenAPI Specifications

Now we need an OpenAPI specification that describes the API contract before we write any implementation code. Given a Film with the following structure:

{
  "title": "ACADEMY DINOSAUR",
  "description": "An Epic Drama of a Feminist And a Mad Scientist",
  "releaseYear": 2006,
  "rating": "PG",
  "length": 86,
  "language": "English",
  "originalLanguage": "English",
  "rentalDuration": 3,
  "rentalRate": 4.99,
  "replacementCost": 20.99,
  "specialFeatures": "Trailers,Deleted Scenes",
  "id": 42,
  "lastUpdate": "2006-02-15T04:03:42Z"
}

We want our Spring Boot application to expose CRUD endpoints

Changed files​

Files to Create/Modify
File Tree
.
├── ...
└── src
    ├── main
    │   ├── ...
    │   └── resources
    │       ├── ...
    │       ├── openapi.yaml
    │       └── ...
    └── test
        └── ...

OpenAPI Specification​

The OpenAPI Specification (OAS) defines a standard, language-agnostic interface to HTTP APIs which allows both humans and computers to discover and understand the capabilities of the service without access to source code, documentation, or through network traffic inspection. When properly defined, a consumer can understand and interact with the remote service with a minimal amount of implementation logic.

resources/openapi.yaml
openapi: 3.0.3
info:
  title: Sakila API
  version: 1.0.0
  description: API for the Sakila sample database - A DVD rental store management system
  contact:
    name: Pollito
    url: https://springboot.pollito.tech/about/about-the-author
servers:
  - url: http://localhost:8080/api
    description: dev
  - url: https://sakila-java.pollito.tech/api
    description: prod
tags:
  - name: Films
    description: Endpoints related to films
paths:
  /films:
    get:
      tags:
        - Films
      operationId: getFilms
      summary: Lists films
      description: Returns a standard response where the data property is a page of films matching the parameters criteria
      parameters:
        - name: page
          in: query
          description: Page number (0-based index)
          schema:
            type: integer
            default: 0
            minimum: 0
          required: false
        - name: size
          in: query
          description: Number of items per page
          schema:
            type: integer
            default: 10
            minimum: 1
            maximum: 100
          required: false
        - name: sort
          in: query
          description: Sort criteria format `property,asc|desc`. Multiple sort parameters allowed
          schema:
            type: array
            items:
              type: string
              example: "name,asc"
          style: form
          explode: true
          required: false
      responses:
        '200':
          description: Fetched page of films
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/FilmListResponse'
        default:
          description: Error
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Error'
    post:
      tags:
        - Films
      operationId: createFilm
      summary: Creates a new film
      description: Creates a new film. Returns a standard response where the data property is the created film
      requestBody:
        required: true
        content:
          application/json:
            schema:
              $ref: '#/components/schemas/FilmFields'
      responses:
        '201':
          description: Created Film
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/FilmResponse'
        default:
          description: Error
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Error'

  /films/{id}:
    get:
      tags:
        - Films
      operationId: getFilm
      summary: Finds a film by id
      description: Returns a standard response where the data property is the film with matching id
      parameters:
        - $ref: '#/components/parameters/filmId'
      responses:
        '200':
          description: Fetched film
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/FilmResponse'
        default:
          description: Error
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Error'
    put:
      tags:
        - Films
      operationId: updateFilm
      summary: Updates a film
      description: Updates the fields of a film. Returns a standard response where the data property is the updated film
      parameters:
        - $ref: '#/components/parameters/filmId'
      requestBody:
        required: true
        content:
          application/json:
            schema:
              $ref: '#/components/schemas/FilmFields'
      responses:
        '200':
          description: Updated film
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/FilmResponse'
        default:
          description: Error
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Error'
    delete:
      tags:
        - Films
      operationId: deleteFilm
      summary: Deletes a film
      description: Deletes a film with matching id
      parameters:
        - $ref: '#/components/parameters/filmId'
      responses:
        '204':
          description: Deleted film. No content is returned
        default:
          description: Error
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Error'
components:
  parameters:
    filmId:
      name: id
      in: path
      description: Film unique identifier
      required: true
      schema:
        type: integer
        minimum: 1
  schemas:
    Error:
      allOf:
        - $ref: '#/components/schemas/ResponseMetadata'
        - type: object
          description: Standard error response
          properties:
            title:
              type: string
              description: HTTP Reason Phrase
              example: 'Not Found'
            detail:
              type: string
              description: Description of the problem
              example: "No static resource for request '/'."
          required:
            - title
    Film:
      description: A film
      allOf:
        - $ref: '#/components/schemas/FilmFields'
        - type: object
          properties:
            id:
              type: integer
              description: Unique identifier of the film
              example: 42
              minimum: 1
            lastUpdate:
              type: string
              format: date-time
              description: When the film record was last updated
              example: '2006-02-15T04:03:42Z'
          required:
            - id
            - lastUpdate
    FilmFields:
      type: object
      description: Writable fields for a film (all required fields specified)
      properties:
        title:
          type: string
          description: Title of the film
          example: 'ACADEMY DINOSAUR'
          maxLength: 255
        description:
          type: string
          description: Short synopsis of the film
          example: 'An Epic Drama of a Feminist And a Mad Scientist'
          maxLength: 255
        releaseYear:
          type: integer
          description: Year the film was released
          example: 2006
          minimum: 1800
          maximum: 2100
        rating:
          $ref: '#/components/schemas/FilmRating'
        length:
          type: integer
          description: Duration of the film in minutes
          example: 86
          minimum: 1
        language:
          $ref: '#/components/schemas/FilmLanguage'
        originalLanguage:
          $ref: '#/components/schemas/FilmLanguage'
        rentalDuration:
          type: integer
          description: Length of the rental period in days
          example: 3
          minimum: 0
        rentalRate:
          type: number
          format: double
          multipleOf: 0.01
          description: Cost to rent the film for the rental period
          example: 4.99
          minimum: 0
        replacementCost:
          type: number
          format: double
          multipleOf: 0.01
          description: Amount charged if the film is not returned or is returned damaged
          example: 20.99
          minimum: 0
        specialFeatures:
          type: string
          description: Special features available on the film DVD
          example: 'Trailers,Deleted Scenes'
          maxLength: 255
      required:
        - title
        - language
        - rentalDuration
        - rentalRate
        - replacementCost
    FilmLanguage:
      type: string
      enum: [English, Italian, Japanese, Mandarin, French, German]
      description: Language used in the film
      example: 'English'
    FilmRating:
      type: string
      enum: [G, PG, PG-13, R, NC-17]
      description: Motion Picture Association (MPA) rating
      example: 'PG'
    FilmListResponse:
      description: Standard response where the data property is a Page of Films
      allOf:
        - $ref: '#/components/schemas/ResponseMetadata'
        - type: object
          properties:
            data:
              allOf:
                - $ref: "#/components/schemas/Page"
                - type: object
                  properties:
                    content:
                      items:
                        $ref: "#/components/schemas/Film"
                      type: array
          required:
            - data
    FilmResponse:
      allOf:
        - $ref: '#/components/schemas/ResponseMetadata'
        - type: object
          properties:
            data:
              $ref: '#/components/schemas/Film'
          required:
            - data
    Page:
      type: object
      description: Sublist of a list of objects. It allows to gain information about the position of it in the containing entire list
      properties:
        content:
          default: []
          items: {}
          type: array
        pageable:
          $ref: "#/components/schemas/Pageable"
        totalElements:
          default: 0
          description: Total number of items that meet the criteria
          example: 10
          type: integer
        totalPages:
          default: 0
          description: Total pages of items that meet the criteria
          example: 10
          type: integer
      required:
        - content
        - pageable
        - totalElements
        - totalPages
    Pageable:
      type: object
      description: Pagination information
      properties:
        pageNumber:
          description: Current page number (starts from 0)
          example: 0
          minimum: 0
          type: integer
        pageSize:
          description: Number of items retrieved on this page
          example: 10
          minimum: 0
          type: integer
      required:
        - pageNumber
        - pageSize
    ResponseMetadata:
      type: object
      description: Standard response
      properties:
        instance:
          type: string
          description: API endpoint that was called
          example: '/api/something'
        status:
          type: integer
          description: HTTP status code
          example: 200
          minimum: 100
          maximum: 599
        timestamp:
          type: string
          format: date-time
          description: ISO 8601 timestamp of when the response was generated
          example: '2026-01-03T17:11:50.826722328Z'
        trace:
          type: string
          description: Unique trace identifier for debugging purposes. Under unexpected situations it can be '00000000000000000000000000000000'
          example: '9482c151-b417-43ff-9dbb-ee12b84e5d99'
      required:
        - instance
        - timestamp
        - trace
        - status

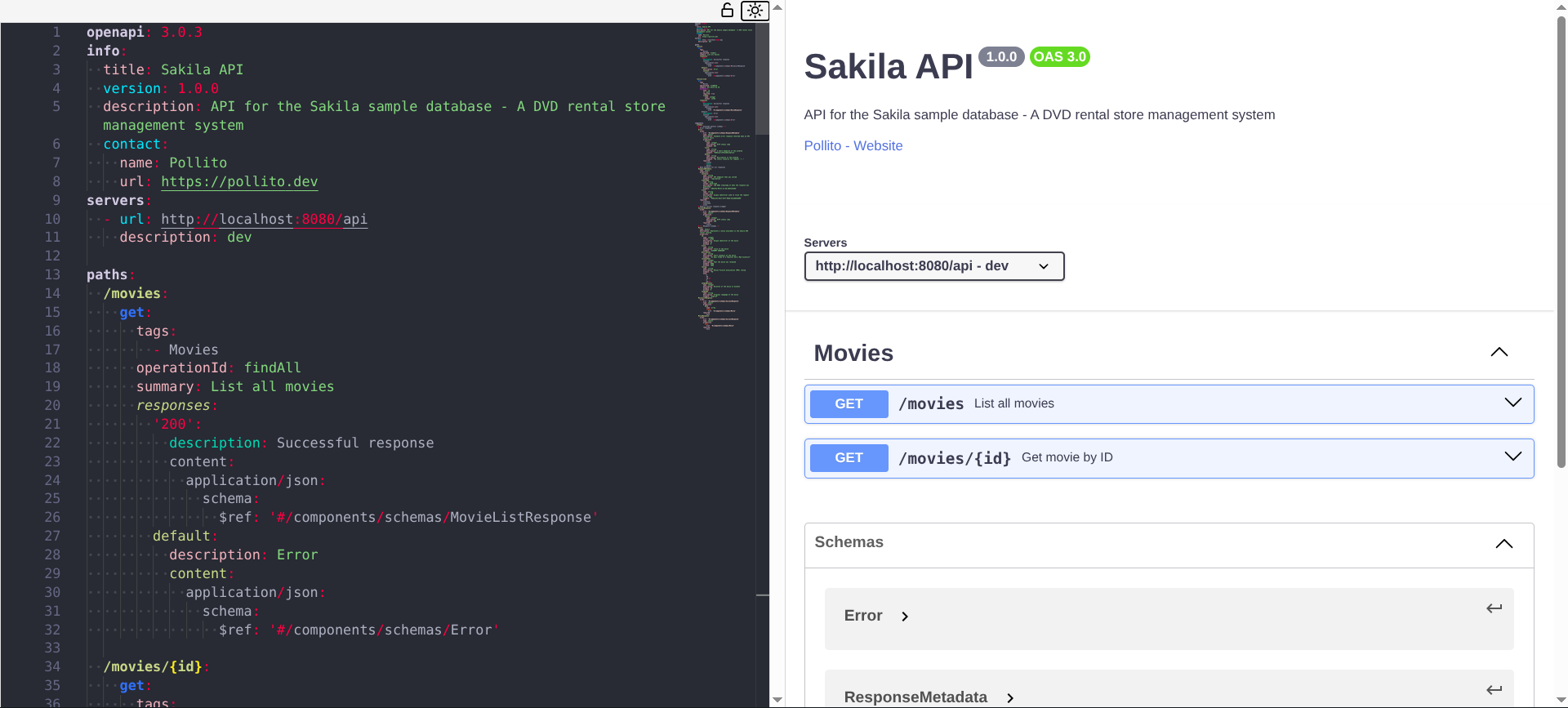

For better visualization you can copy-paste the OpenAPI Specification YAML file from the codebase into Swagger Editor or use OpenAPI (Swagger) Editor in IntelliJ IDEA.

The envelope pattern​

You might be looking at the response examples and thinking, "What's with all that extra fluff? Why wrap the actual film data inside a data object?"

{
  "instance": "/api/films/42",
  "timestamp": "...",
  "trace": "...",
  "status": 200,
  "data": {
    "id": 42,
    "title": "ACADEMY DINOSAUR",
    // ...
  }
}

That is a deliberate choice called the Envelope Pattern. And once you start using it, you won't want to go back.

Think of it like physical mail. Every piece of mail you get, whether it's a birthday card or a bill, comes in an envelope. The envelope has standard information on it: a return address, a destination address, a stamp. The actual message is inside.

Our API responses work the same way. The ResponseMetadata schema is our envelope.

ResponseMetadata:
  type: object
  properties:
    instance:
      # ...
    status:
      # ...
    timestamp:
      # ...
    trace:
      # ...

Every single response from the API, whether it's a success (200 OK) or an error (404 Not Found, 500 Internal Server Error, etc.), will have this same top-level structure.

  • The actual payload goes inside the data property for successful responses.
  • For errors, we swap data for title and detail so we keep adhering to Problem Details for HTTP APIs.

Why even bother?​

Consistency, that's the whole game.

  1. Client side sanity: The developer building the frontend or mobile app can write one piece of code to handle all API responses. They always know where to find the trace ID to show a user reporting a bug. They can build a generic error handler that always looks for title and detail. They aren't guessing whether the payload is the object itself, an array, or some weird error shape.
  2. Future proofing: What if we need to add some other metadata? No problem. We just add a new field to the envelope level. The data part remains untouched, and we don't break the client's parsing logic for the actual film data.
  3. It just looks professional: An API with a consistent response structure feels solid and well-thought-out. An inconsistent one feels amateurish and is a pain to work with.

Pagination​

TODO: explain pagination

With the OpenAPI specification and the envelope pattern in place, the API contract is fully defined. The next step is to generate Spring Boot code from this spec so the implementation matches the contract exactly.
