Configure the Generated Feign Client API

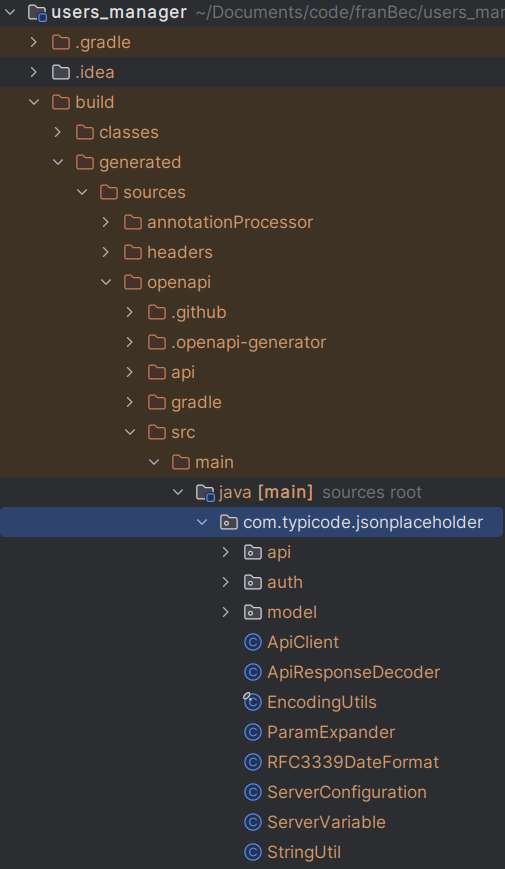

So far we've used the OpenAPI Generator Gradle Plugin to generate the representation of the external API we want to integrate.

But we are not using any of that code in our application yet. Let's change that.

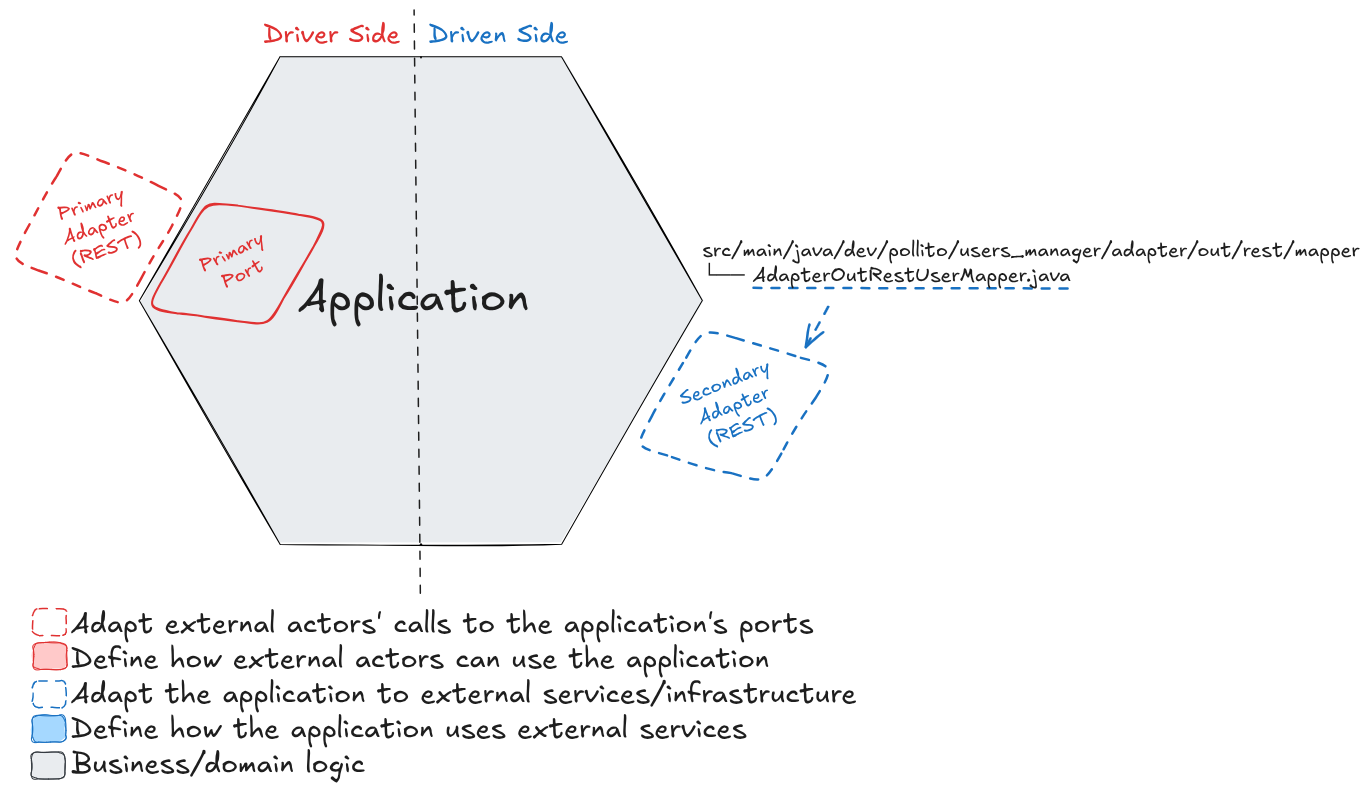

Mapper

It converts between API response models and domain models.

Other folders are omitted for simplicity.

src/main/java/dev/pollito/users_manager/adapter/out/rest/mapper/AdapterOutRestUserMapper.java

package dev.pollito.users_manager.adapter.out.rest.mapper;

import static org.mapstruct.MappingConstants.ComponentModel.SPRING;

import dev.pollito.users_manager.domain.model.User;
import org.mapstruct.Mapper;

@Mapper(componentModel = SPRING)
public interface AdapterOutRestUserMapper {
  User map(com.typicode.jsonplaceholder.model.User u);
}

Spring Bean Registration Mapper Conflict

Why does this mapper have a long name (AdapterOutRestUserMapper) instead of a simple one (like UserMapper)? That's because in our project, the name UserMapper is already taken by src/main/java/dev/pollito/users_manager/adapter/in/rest/mapper/UserMapper.java.

• When using @Mapper(componentModel = SPRING), the generated implementations are registered as Spring beans.
• Spring requires unique bean identifiers, and same-named classes cause conflicts.

Personal recommendation: for consistency, rename src/main/java/dev/pollito/users_manager/adapter/in/rest/mapper/UserMapper.java to src/main/java/dev/pollito/users_manager/adapter/in/rest/mapper/AdapterInRestUserMapper.java

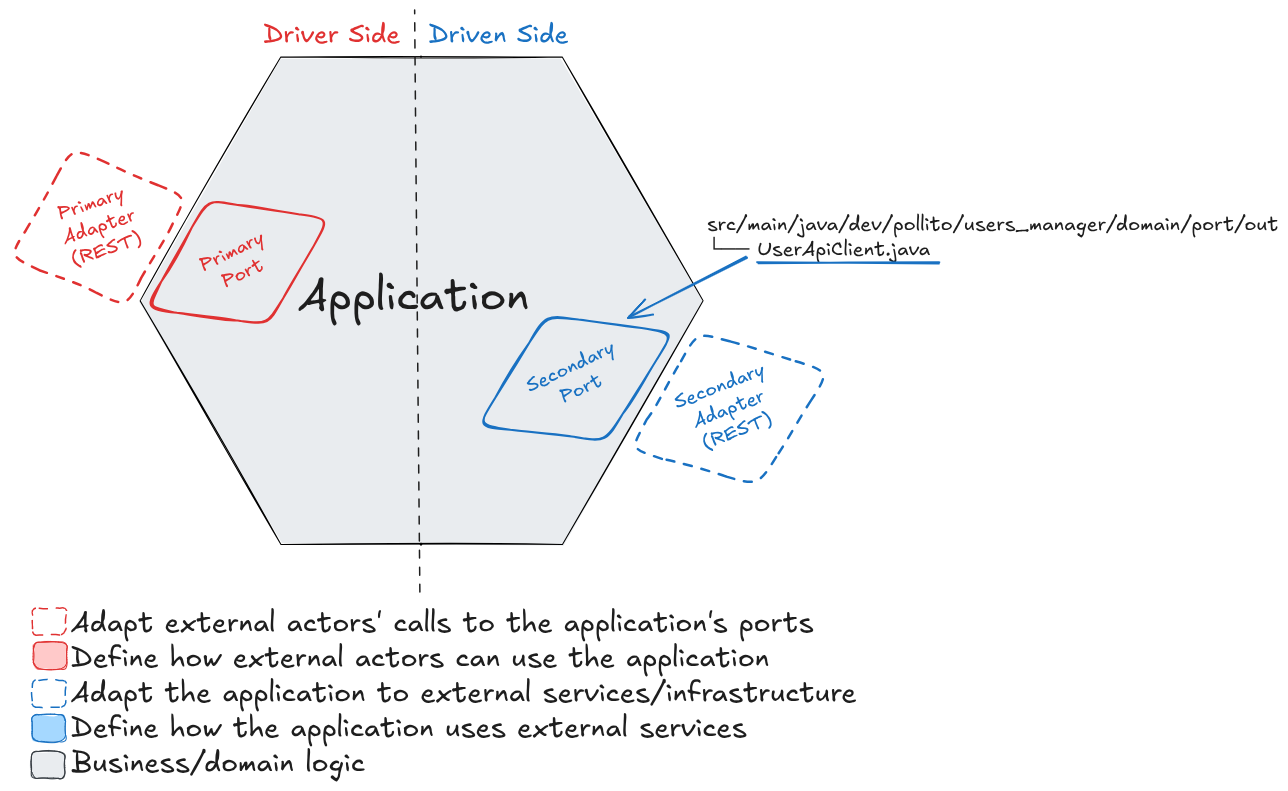

Secondary Port

Create a Secondary Port.

Other folders are omitted for simplicity.

src/main/java/dev/pollito/users_manager/domain/port/out/UserApiClient.java

package dev.pollito.users_manager.domain.port.out;

import dev.pollito.users_manager.domain.model.User;
import java.util.List;
import java.util.Optional;

public interface UserApiClient {
  List<User> findAll();

  Optional<User> findById(Long id);
}

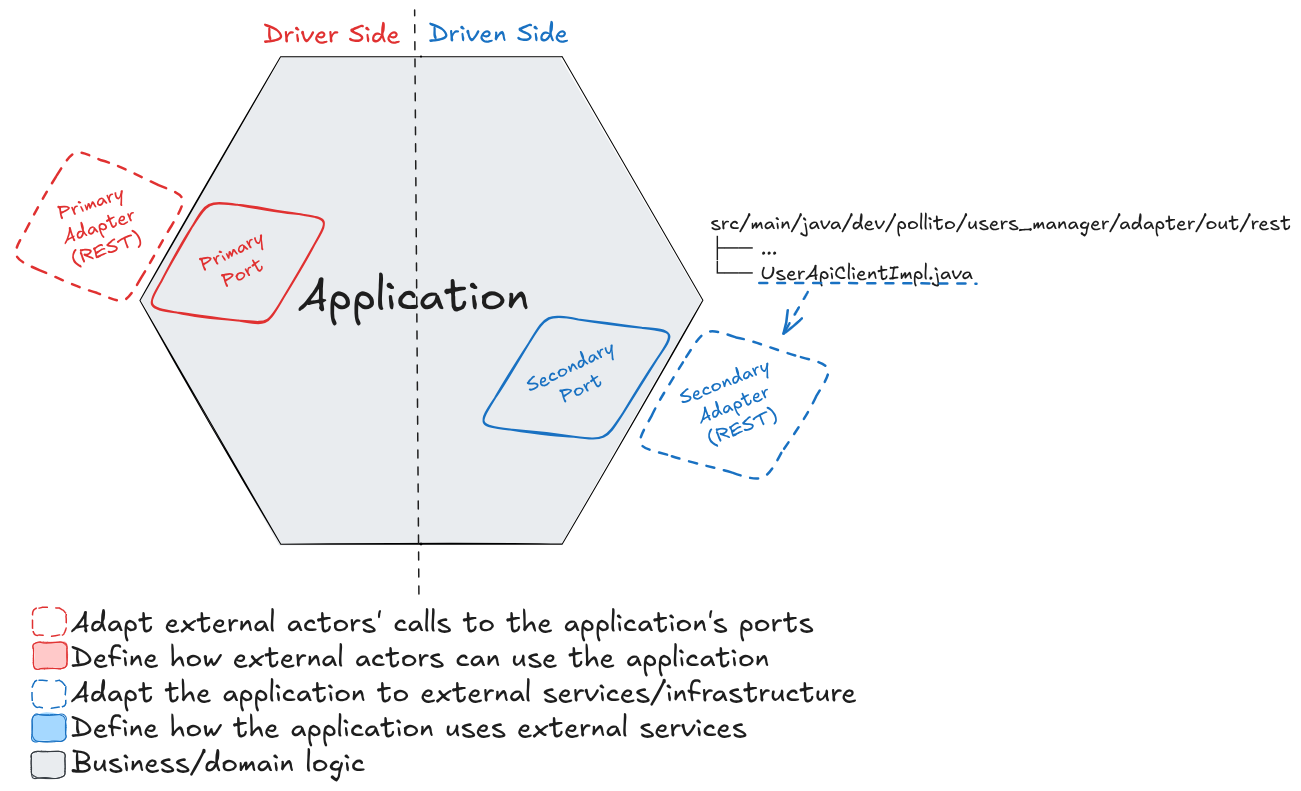

Secondary Adapter (REST)

Create an adapter that implements the Secondary Port.

Other folders are omitted for simplicity.

src/main/java/dev/pollito/users_manager/adapter/out/rest/UserApiClientImpl.java

package dev.pollito.users_manager.adapter.out.rest;

import com.typicode.jsonplaceholder.api.UserApi;
import dev.pollito.users_manager.adapter.out.rest.mapper.AdapterOutRestUserMapper;
import dev.pollito.users_manager.config.feign.FeignException;
import dev.pollito.users_manager.domain.model.User;
import dev.pollito.users_manager.domain.port.out.UserApiClient;
import java.util.List;
import java.util.Optional;
import lombok.RequiredArgsConstructor;
import org.springframework.http.HttpStatus;
import org.springframework.stereotype.Service;

@Service
@RequiredArgsConstructor
public class UserApiClientImpl implements UserApiClient {
  private final UserApi userApi;
  private final AdapterOutRestUserMapper adapterOutRestUserMapper;

  @Override
  public List<User> findAll() {
    return userApi.findAll().stream().map(adapterOutRestUserMapper::map).toList();
  }

  @Override
  public Optional<User> findById(Long id) {
    try {
      return Optional.of(adapterOutRestUserMapper.map(userApi.findById(id)));
    } catch (FeignException e) {
      if (e.getStatus() == HttpStatus.NOT_FOUND.value()) {
        return Optional.empty();
      }
      throw e;
    }
  }
}

URL Value in application.yml

If by now you haven’t renamed src/main/resources/application.properties, rename it to src/main/resources/application.yml.

Then, add the url of the outside source we are integrating. The result should look something like this:

src/main/resources/application.yml

jsonplaceholder:
  baseUrl: https://jsonplaceholder.typicode.com/
spring:
  application:
    name: users_manager

• It is important that the name of the root keys (in this particular example, jsonplaceholder) is all lowercase.
  • If not, later you’ll get the error Prefix must be in canonical form.
• Order in this file doesn’t matter. I like to have stuff alphabetically sorted.

Configuration Properties

To access the url defined in src/main/resources/application.yml, we are going to use a ConfigurationProperties class

• There are other ways to access an externalized configuration property. The most common one I see everywhere is using the annotation @Value. I don't recommend it much cause when doing unit testing, you end up using Reflection, which is seen as bad practice.

src/main/java/dev/pollito/users_manager/config/feign/jsonplaceholder/JsonPlaceholderConfigProperties.java

package dev.pollito.users_manager.config.feign.jsonplaceholder;

import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Configuration;

@Configuration
@ConfigurationProperties(prefix = "jsonplaceholder")
@Data
public class JsonPlaceholderConfigProperties {
  private String baseUrl;
}

Api Client Configuration

Create a configuration class that:

• Reads the base URL from application.yml
• Configures the ApiClient
• Registers the ErrorDecoder

src/main/java/dev/pollito/users_manager/config/feign/jsonplaceholder/JsonPlaceholderApiConfig.java

package dev.pollito.users_manager.config.feign.jsonplaceholder;

import com.typicode.jsonplaceholder.ApiClient;
import com.typicode.jsonplaceholder.api.UserApi;
import lombok.RequiredArgsConstructor;
import org.jetbrains.annotations.NotNull;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
@RequiredArgsConstructor
public class JsonPlaceholderApiConfig {
  private final JsonPlaceholderConfigProperties jsonPlaceholderConfigProperties;
  private final JsonPlaceholderErrorDecoder jsonPlaceholderErrorDecoder;

  @Bean
  public ApiClient apiClient() {
    ApiClient apiClient = new ApiClient();
    apiClient.setBasePath(jsonPlaceholderConfigProperties.getBaseUrl());
    apiClient.setFeignBuilder(
        apiClient.getFeignBuilder().errorDecoder(jsonPlaceholderErrorDecoder));

    return apiClient;
  }

  @Bean
  public UserApi userApi(@NotNull ApiClient apiClient) {
    return apiClient.buildClient(UserApi.class);
  }
}

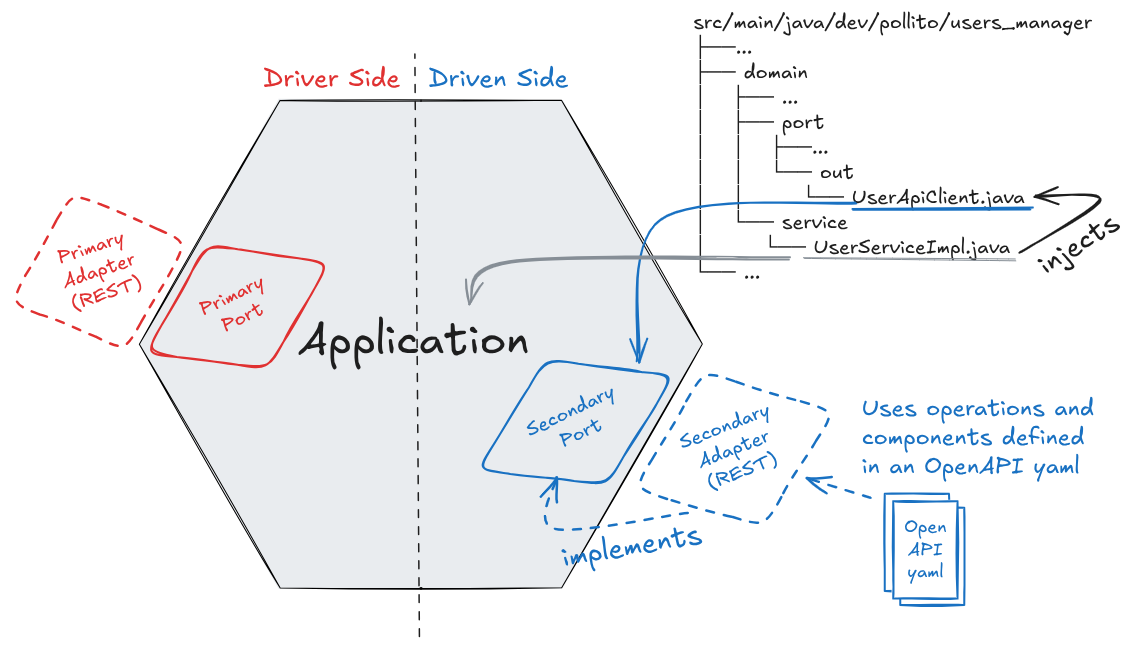

Use the Secondary Port

Modify UserServiceImpl so the application uses the API client.

Other folders are omitted for simplicity.

src/main/java/dev/pollito/users_manager/domain/service/UserServiceImpl.java

package dev.pollito.users_manager.domain.service;

import dev.pollito.users_manager.domain.model.User;
import dev.pollito.users_manager.domain.port.in.UserService;
import dev.pollito.users_manager.domain.port.out.UserApiClient;
import java.util.List;
import lombok.RequiredArgsConstructor;
import org.springframework.stereotype.Service;

@Service
@RequiredArgsConstructor
public class UserServiceImpl implements UserService {
  private final UserApiClient userApiClient;

  @Override
  public List<User> findAll() {
    return userApiClient.findAll();
  }

  @Override
  public User findById(Long id) {
    return userApiClient.findById(id).orElseThrow();
  }
}

Run the Application

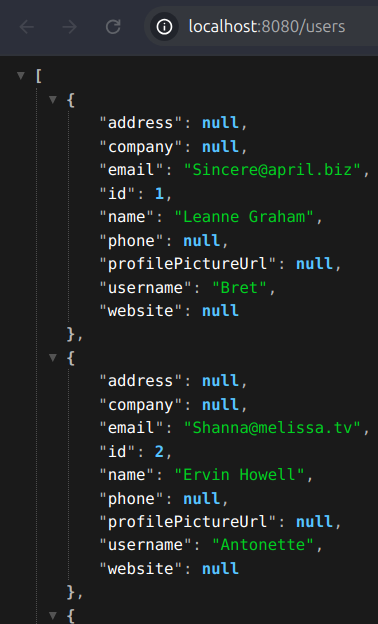

Right-click the main class → Run. Then go to http://localhost:8080/users.

🔍 Click to zoom

1. Client initiates request: An external client makes an HTTP GET request to the application's user listing endpoint.
2. Spring MVC & filters: The request hits the Spring DispatcherServlet and passes through the LogFilter, which logs incoming request details before allowing processing to continue.
3. Routing to controller: Spring MVC routes the request to the UserController, specifically the findAll() method. The LogAspect logs the entry into this controller method.
4. Controller invokes service: The UserController.findAll() method delegates the request to the UserService interface implementation (UserServiceImpl).
5. Service invokes adapter: The UserServiceImpl.findAll() method delegates the request to the UserApiClient interface implementation (UserApiClientImpl).
6. Adapter calls external API via Feign: The UserApiClientImpl.findAll() method calls userApi.findAll(). userApi is a Feign client proxy that sends an HTTP GET request to the external JSONPlaceholder API. The LogAspect logs the entry into this external API call via Feign.
7. External API responds: The JSONPlaceholder API processes the request and returns an HTTP response containing a list of users in its specific format.
8. Feign client handles response: The Feign client receives the response, deserializes it, and returns a list of external user models to the UserApiClientImpl. The LogAspect logs the response from the Feign call.
9. Adapter maps models: Within the UserApiClientImpl, the returned list of external user models is mapped to the application's domain model (dev.pollito.users_manager.domain.model.User) using the AdapterOutRestUserMapper.
10. Adapter returns to service: The UserApiClientImpl returns the list of domain user models to the UserServiceImpl.
11. Service returns to controller: The UserServiceImpl returns the list of domain user models to the UserController.
12. Controller maps models: Within the UserController, the list of domain user models is mapped to the REST DTO format (dev.pollito.users_manager.adapter.in.rest.dto.User) used for the API response, using the AdapterInRestUserMapper.
13. Controller returns response entity: The UserController wraps the list of DTOs in a ResponseEntity.ok() and returns it to Spring. The LogAspect logs the response from the controller method.
14. Spring MVC & filters handle response: Spring MVC processes the ResponseEntity. The response passes back through the LogFilter, which logs outgoing response details.
15. Response sent to client: Spring sends the final HTTP response to the client.

Congratulations! Your Spring Boot app is up, running, and getting information from an external source.

Commit the progress so far.

git add .
git commit -m "using generated secondary adapter external api code from an openapi specification"

Next Steps

Here's some homework for you:

Create the Missing Application Domains

Create the missing Application Domains Address, Company and Geo. This way, the information obtained from the Secondary Adapter will appear in the application response.

src/main/java/dev/pollito/users_manager/domain/model/Address.java

package dev.pollito.users_manager.domain.model;

import static lombok.AccessLevel.PRIVATE;

import lombok.Data;
import lombok.experimental.FieldDefaults;

@Data
@FieldDefaults(level = PRIVATE)
public class Address {
 String city;
 Geo geo;
 String street;
 String suite;
 String zipcode;
}

src/main/java/dev/pollito/users_manager/domain/model/Company.java

package dev.pollito.users_manager.domain.model;

import static lombok.AccessLevel.PRIVATE;

import lombok.Data;
import lombok.experimental.FieldDefaults;

@Data
@FieldDefaults(level = PRIVATE)
public class Company {
  String bs;
  String catchPhrase;
  String name;
}

src/main/java/dev/pollito/users_manager/domain/model/Geo.java

package dev.pollito.users_manager.domain.model;

import static lombok.AccessLevel.PRIVATE;

import lombok.Data;
import lombok.experimental.FieldDefaults;

@Data
@FieldDefaults(level = PRIVATE)
public class Geo {
  String lat;
  String lng;
}

Update User.

src/main/java/dev/pollito/users_manager/domain/model/User.java

package dev.pollito.users_manager.domain.model;

import static lombok.AccessLevel.PRIVATE;

import lombok.Data;
import lombok.experimental.FieldDefaults;

@Data
@FieldDefaults(level = PRIVATE)
public class User {
  Long id;
  String name;
  String username;
  String email;
  String phone;
  String profilePictureUrl;
  String website;
  Address address;
  Company company;
}

Extend the Logging Aspect

Extend the logging aspect to cover methods in the jsonPlaceholder API.

src/main/java/dev/pollito/users_manager/config/aspect/LogAspect.java

package dev.pollito.users_manager.config.aspect;

import java.util.Arrays;
import lombok.extern.slf4j.Slf4j;
import org.aspectj.lang.JoinPoint;
import org.aspectj.lang.annotation.AfterReturning;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Before;
import org.aspectj.lang.annotation.Pointcut;
import org.jetbrains.annotations.NotNull;
import org.springframework.stereotype.Component;

@Aspect
@Component
@Slf4j
public class LogAspect {
  @Pointcut("execution(public * dev.pollito.users_manager.adapter.in.rest..*Controller.*(..))")
  public void controllerPublicMethodsPointcut() {}

  @Pointcut("execution(public * com.typicode.jsonplaceholder.api.*.*(..))")
  public void jsonPlaceholderApiMethodsPointcut() {}

  @Before("controllerPublicMethodsPointcut() || jsonPlaceholderApiMethodsPointcut()")
  public void logBefore(@NotNull JoinPoint joinPoint) {
    log.info(
        "[{}] Args: {}",
        joinPoint.getSignature().toShortString(),
        Arrays.toString(joinPoint.getArgs()));
  }

  @AfterReturning(
          pointcut = "controllerPublicMethodsPointcut() || jsonPlaceholderApiMethodsPointcut()",
          returning = "result")
  public void logAfterReturning(@NotNull JoinPoint joinPoint, Object result) {
    log.info("[{}] Response: {}", joinPoint.getSignature().toShortString(), result);
  }
}

Update Unit Tests

If you want mutation testing to apply to the newly created UserApiClientImpl, you need to add its location to the pitest configuration in build.gradle.

build.gradle

pitest {
    junit5PluginVersion = '1.2.1'
    outputFormats = ['HTML']
    targetClasses = [
        "${project.group}.${project.name}.adapter.in.rest.*".toString(),
        "${project.group}.${project.name}.adapter.out.rest.*".toString(),
        "${project.group}.${project.name}.config.advice.*".toString(),
        "${project.group}.${project.name}.domain.service.*".toString(),
    ]
    excludedClasses = [
        // exclude all subpackages in adapter.in.rest, such as mappers and openApi generated code
        "${project.group}.${project.name}.adapter.in.rest.*.*".toString(),
        // exclude all subpackages in adapter.out.rest, such as mappers
        "${project.group}.${project.name}.adapter.out.rest.*.*".toString()
    ]
    targetTests = [
        "${project.group}.${project.name}.*".toString()
    ]
    timestampedReports = false
    useClasspathFile = true
}
